EFT
Tillverkarnr FU00304M015B01
FU00304M015B01
Utgått. Ersätts av FUH015MG0BS0.

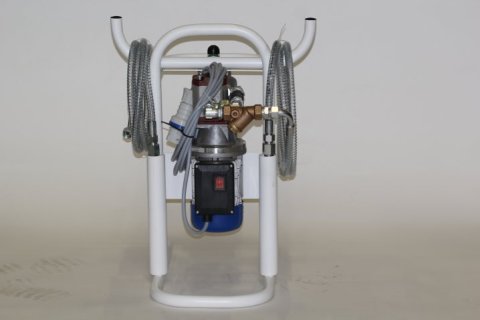

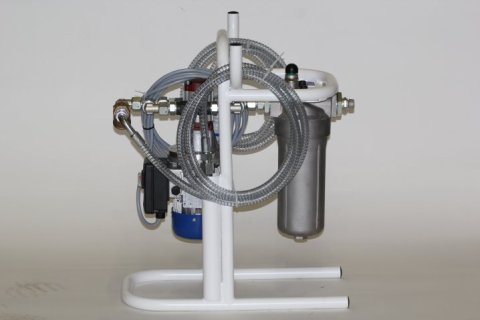

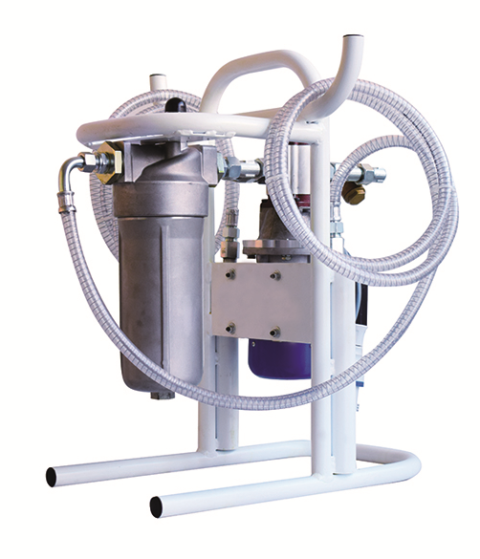

FUH015MG0BS0 Transfer and filtration unit portable
FILTREC · 151875
Kategorier:
Partial-flow filtration unit
Specifikationer
- Safety valve switching pressure [bar]
- 6
- Durchfluss [l/min]
- 15
- Special feature
- CE certification
- Pre-filter
- Y-Filter / 500 µm
- Suction hose length [mm]
- 3000
- Viscosity [cSt]
- 30 to 150
- Temperature range
- 0°C to 80°C
- Pressure hose length [mm]
- 3000
- Filterelement
- DMD0030xxx not included in delivery
- Electrical connection
- 0.18 Kw / 4-pole / 230 V / 50 Hz
- Weight [kg]
- 25
- Wartungsanzeiger / -schalter
- Optional differential pressure indicator (switching point 2.7 bar)
