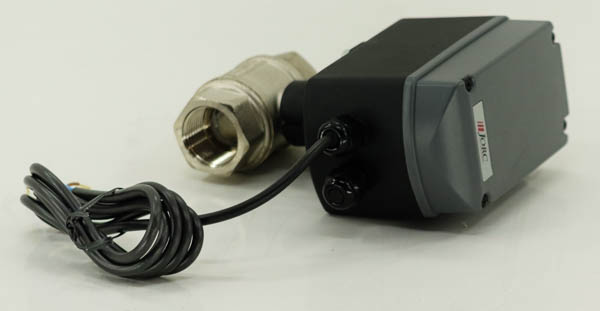

7005 LS JORC AIR-SAVER-LS G1 230VAC 16bar

Specifikationer

System pressure

0 to 16 bar

Ambient temperature

+1°C to +50°C

Outlet connection

1" (BSP oder NPT)

Inlet connection

1" (BSP oder NPT)

Valve housing material

Brass valve, nickel-plated

Protection class

IP54 (NEMA13)

Duration of valve opening/closing

30 sec. (90°)

Manual override

Yes

Supply voltage

230 V

Medium temperature

+1°C to +100°C

Power consumption

Approx. 7 W during cycle rotation

Bemerkung

Energy saver for compressed air

Relay switch

230 VAC

Weight [kg]

1,625
